Flanges Specifications
Flanges are critical components used to connect pipes, valves, pumps, and other equipment in piping systems. They provide easy access for inspection, cleaning, and modification. Available in various types such as weld neck, slip-on, socket weld, and blind, flanges are manufactured to international standards like ASME, ANSI, DIN, and BS. They are commonly made from stainless steel, carbon steel, and alloy steel to withstand high pressure, temperature, and corrosion. Flanges ensure strong, secure, and leak-proof joints across industrial applications.
Stainless and Duplex Steel
| Range |
15 NB UP TO 600 NB in: 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS TABLE: 2.5, 6, 10, 16, 25, 40, 64, 160, 320, 400 |
|---|---|
| Form |
Slip On, Socket Weld, Blind, Lapped, Screwed, Weld Neck, Reducing, Spectacle, Slip On Boss, Plate, Plate Blank, Screwed Boss |
| Stainless Steel |
ASTM / ASME SA 182 F: 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347H |
| Duplex Steel | ASTM / ASME SA 182 F: 44, F45, F51, F53, F55, F60, F61 |

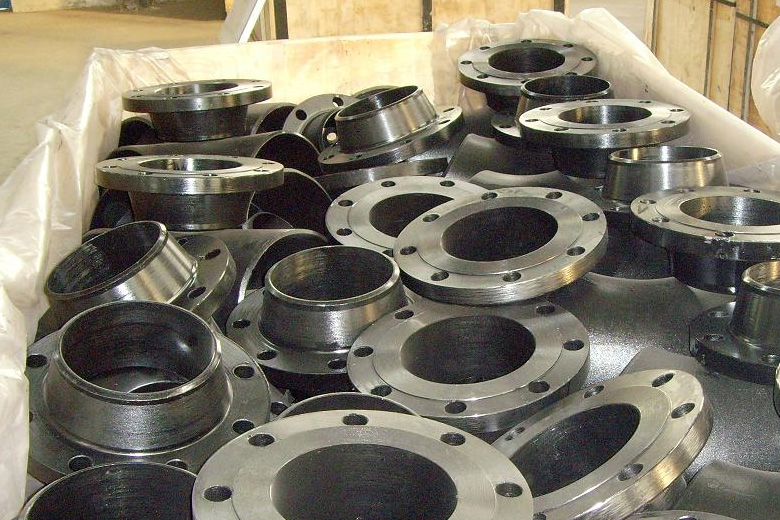

Carbon & Alloy Steel
| Range |
15 NB UP TO 600 NB in: 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS TABLE: 2.5, 6, 10, 16, 25, 40, 64, 160, 320, 400 |
|---|---|
| Form |
Slip On, Socket Weld, Blind, Lapped, Screwed, Weld Neck, Reducing, Spectacle, Slip On Boss, Plate, Plate Blank, Screwed Boss |
| Carbon Steel |
ASTM / ASME A 105, ASTM / ASME A 350 LF2 |
| Alloy Steel | ASTM / ASME A 182 GR: F5, F9, F11, F12, F22, F91 |

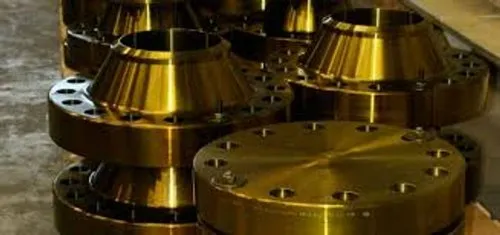

Nickel & Copper Alloy
| Range |
15 NB UP TO 600 NB in: 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS TABLE: 2.5, 6, 10, 16, 25, 40, 64, 160, 320, 400 |
|---|---|
| Form |
Slip On, Socket Weld, Blind, Lapped, Screwed, Weld Neck, Reducing, Spectacle, Slip On Boss, Plate, Plate Blank, Screwed Boss |
| Nickel Alloy |
ASTM / ASME SB 564: UNS 2200 (Nickel 200), UNS 4400 (Monel 400), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C276) ASTM / ASME SB 160: UNS 2201 (Nickel 201) ASTM / ASME SB 472: UNS 8020 (Alloy 20 / 20 CB 3) |
| Copper Alloy |
ASTM / ASME SB 61: UNS C92200 ASTM / ASME SB 62: UNS C83600 ASTM / ASME SB 151: UNS 70600, 71500, C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30) ASTM / ASME SB 152: UNS C10100, C10200, C10300, C10800, C12000, C12200 |

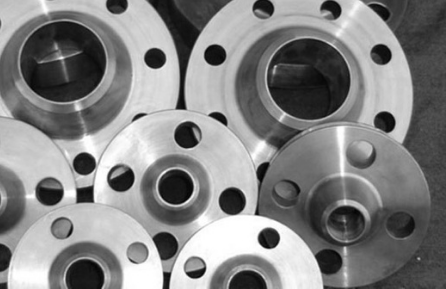

Hastelloy
| Grades | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000 |
|---|---|
| Size | 1/2"NB to 12"NB |
| Standard | ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE |
| Types |
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint |
| Features |
Durability Corrosion resistance Dimensional accuracy High strength Excellent finish |
Inconel
| Grades |
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 |
|---|---|
| Size | 1/2 inch - 48 inch (15mm - 1200mm) |
| Standard | ANSI/ASME B16.5, ANSI B16.47, API, DIN, JIS, BS |
| Types |
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint |
| Features |
Durability Corrosion resistance Dimensional accuracy High strength Excellent finish |

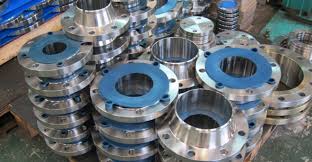

Monel
| Grades | Monel 400, Monel K500 |
|---|---|
| Range | 1/2" NB to 60" NB |
| Types |
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint |
| Features |
Durability Corrosion resistance Dimensional accuracy High strength Chemical resistance Excellent finish |
Titanium
| Material | Titanium |
|---|---|
| Grade | Gr2, Gr5, Gr7, Gr9 |
| Standards | DIN, ASTM, BS |
| Application | Bicycles, Motors, Chemicals |
| Strength |
Superior Quality, Fast Delivery, Competitive Price, Humanized After-Sales Service |
| Features |
Low Density Rustless Good Antiwear Property High Strength |
| Size | Set the size according to the customers' requirements |
